HB-IW

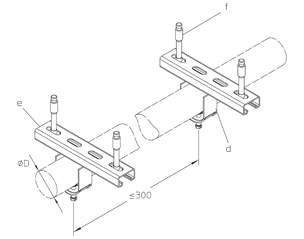

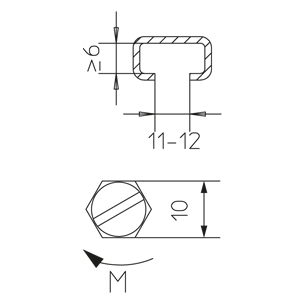

Cable clamp with full-surface vat made of galvanised steel and additional insulating vat made of polystyrene. For fastening to C-profile rails (C) with a slot size of 11 mm.
Zinc coated
| Артикул | Product | diameter |

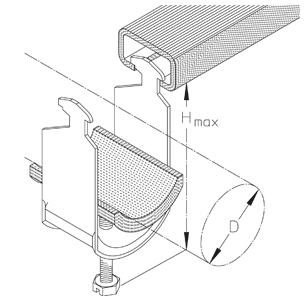

Hmax
Maximum height
| torque |
number of cables
Maximum number of installable cables
| weight | |
|---|---|---|---|---|---|---|---|
| 12 HB-IW | 8-12 mm | 42.50 mm | 2 Nm | 1 | 2.70 kg/100 | ||
| 16 HB-IW | 12-16 mm | 47.50 mm | 2 Nm | 1 | 3 kg/100 | ||
| 20 HB-IW | 16-20 mm | 51.50 mm | 2 Nm | 1 | 3.40 kg/100 | ||
| 24 HB-IW | 20-24 mm | 55.70 mm | 2 Nm | 1 | 4 kg/100 | ||
| 28 HB-IW | 24-28 mm | 59.70 mm | 2 Nm | 1 | 4.50 kg/100 | ||
| 32 HB-IW | 28-32 mm | 65 mm | 2 Nm | 1 | 6.20 kg/100 | ||
| 36 HB-IW | 32-36 mm | 69 mm | 2 Nm | 1 | 7.10 kg/100 | ||
| 40 HB-IW | 36-40 mm | 73 mm | 2 Nm | 1 | 7.90 kg/100 | ||
| 44 HB-IW | 40-44 mm | 83 mm | 4 Nm | 1 | 9.90 kg/100 | ||
| 48 HB-IW | 44-48 mm | 87 mm | 4 Nm | 1 | 10.10 kg/100 | ||
| 52 HB-IW | 48-52 mm | 92.50 mm | 4 Nm | 1 | 11.10 kg/100 | ||
| 56 HB-IW | 52-56 mm | 96.50 mm | 4 Nm | 1 | 11.70 kg/100 | ||
| 60 HB-IW | 56-60 mm | 100.50 mm | 4 Nm | 1 | 15.40 kg/100 | ||
| 64 HB-IW | 60-64 mm | 104.50 mm | 4 Nm | 1 | 16.10 kg/100 | ||
| 70 HB-IW | 64-70 mm | 111.50 mm | 4 Nm | 1 | 17.80 kg/100 |
