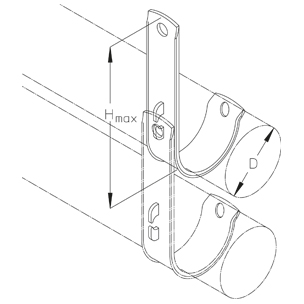

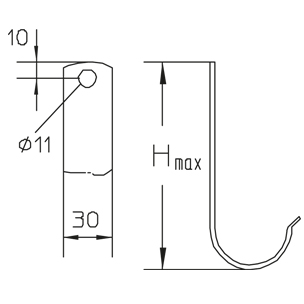

HK 30-70
Cable hook galvanized, for provisional laying of cables with a diameter up to 70 mm.
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| Артикул | Product | diameter |
Hmax
Maximum height
|
number of cables
Maximum number of installable cables
| weight | |
|---|---|---|---|---|---|---|
| HK 30 | ≤ 30 mm | 105 mm | 1 | 9.80 kg/100 | ||
| HK 40 | ≤ 40 mm | 110 mm | 1 | 11 kg/100 | ||
| HK 50 | ≤ 50 mm | 130 mm | 1 | 13.10 kg/100 | ||
| HK 60 | ≤ 60 mm | 150 mm | 1 | 15.10 kg/100 | ||
| HK 70 | ≤ 70 mm | 170 mm | 1 | 16.20 kg/100 |
