RU

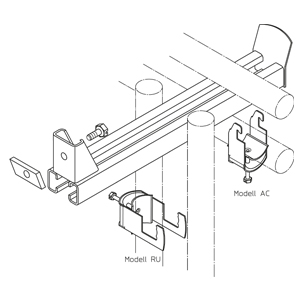

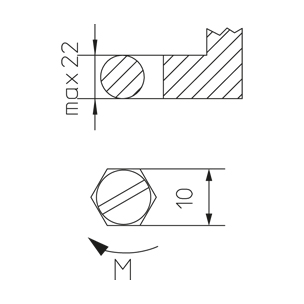

Cable clamp with full-surface vat made of galvanised steel. For fastening to round and flat profiles with a material thickness of up to 22 mm.
This article is available made in material no. 14301 (V2A) and material no. 1.4571/1.4404 (V4A) stainless steel finish.
Zinc coated
| Артикул | Product | diameter |

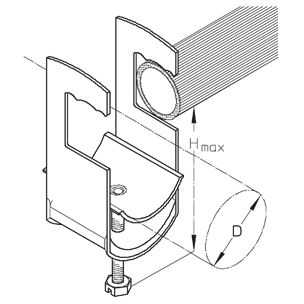

Hmax
Maximum height
| torque |
number of cables
Maximum number of installable cables
| weight | |
|---|---|---|---|---|---|---|---|
| 14 RU | 8-14 mm | 48 mm | 2 Nm | 1 | 4.30 kg/100 | ||
| 20 RU | 14-20 mm | 54 mm | 2 Nm | 1 | 4.90 kg/100 | ||
| 26 RU | 20-26 mm | 60 mm | 2 Nm | 1 | 5.90 kg/100 | ||
| 32 RU | 26-32 mm | 67 mm | 2 Nm | 1 | 9.20 kg/100 | ||
| 38 RU | 32-38 mm | 74 mm | 2 Nm | 1 | 10.50 kg/100 | ||
| 44 RU | 38-44 mm | 82 mm | 4 Nm | 1 | 12 kg/100 | ||
| 52 RU | 44-52 mm | 91 mm | 4 Nm | 1 | 14.30 kg/100 | ||
| 60 RU | 52-60 mm | 99 mm | 4 Nm | 1 | 16.40 kg/100 | ||
| 70 RU | 64-70 mm | 109 mm | 4 Nm | 1 | 18.40 kg/100 | ||
| 14/2 RU | 8-14 mm | 63 mm | 2 Nm | 2 | 5.60 kg/100 | ||
| 20/2 RU | 14-20 mm | 75 mm | 2 Nm | 2 | 6.80 kg/100 | ||
| 26/2 RU | 20-26 mm | 88 mm | 2 Nm | 2 | 8.10 kg/100 | ||
| 32/2 RU | 26-32 mm | 101 mm | 2 Nm | 2 | 12.50 kg/100 |
