W

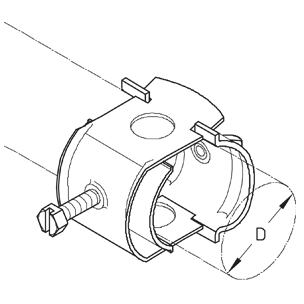

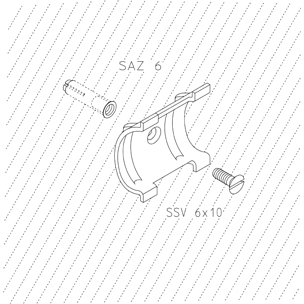

Cable clamp galvanised, for fastening directly to walls. certified according to DIN 4102-12
Zinc coated
| Артикул | Product | diameter | torque | weight | |
|---|---|---|---|---|---|
| 16 W | 12-16 mm | 2 Nm | 4.40 kg/100 | ||
| 20 W | 16-20 mm | 2 Nm | 5.40 kg/100 | ||
| 24 W | 20-24 mm | 2 Nm | 5.80 kg/100 | ||
| 28 W | 24-28 mm | 2 Nm | 6.30 kg/100 | ||
| 32 W | 28-32 mm | 4 Nm | 8.50 kg/100 | ||
| 36 W | 32-36 mm | 4 Nm | 9.10 kg/100 | ||
| 44 W | 36-44 mm | 4 Nm | 13.50 kg/100 | ||
| 52 W | 44-52 mm | 4 Nm | 16.50 kg/100 | ||
| 60 W | 52-60 mm | 4 Nm | 19.50 kg/100 |
