S-HW

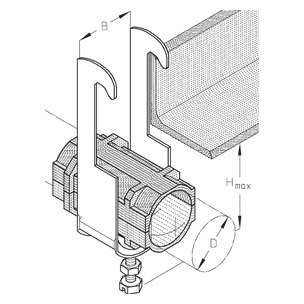

HF cable clamp with all-over vat made of galvanised steel and plastic half-vats made of polystyrene. For fastening to angle profiles with a side length of up to max. 43 mm.
Zinc coated
Stainless steel, according to ASTM 304 / BS 304 S 3
| Артикул | Product | width | diameter | diameter |
Hmax
Maximum height
|
number of cables
Maximum number of installable cables
| weight | |
|---|---|---|---|---|---|---|---|---|
| 20 S-HW | 20 mm | 20 mm | 1/2 inch | 53 mm | 1 | 5.52 kg/100 | ||
| 32 S-HW | 32 mm | 32 mm | 7/8 inch | 68 mm | 1 | 8.60 kg/100 | ||
| 44 S-HW | 44 mm | 44 mm | 1 1/4 inch | 83 mm | 1 | 14.90 kg/100 | ||
| 56 S-HW | 56 mm | 56 mm | 1 5/8 inch | 106 mm | 1 | 18.22 kg/100 | ||
| 20/2 S-HW | 20 mm | 20 mm | 1/2 inch | 73 mm | 2 | 6.44 kg/100 | ||
| 32/2 S-HW | 32 mm | 32 mm | 7/8 inch | 102 mm | 2 | 13.30 kg/100 | ||
| 20/3 S-HW | 20 mm | 20 mm | 1/2 inch | 93 mm | 3 | 8.66 kg/100 |
| Артикул | Product | width | diameter | diameter |
Hmax
Maximum height
|
number of cables
Maximum number of installable cables
| weight | |
|---|---|---|---|---|---|---|---|---|
| 20 S-HW-E | 20 mm | 20 mm | 1/2 inch | 53 mm | 1 | 5.12 kg/100 | ||
| 32 S-HW-E | 32 mm | 32 mm | 7/8 inch | 68 mm | 1 | 8.80 kg/100 | ||
| 44 S-HW-E | 44 mm | 44 mm | 1 1/4 inch | 83 mm | 1 | 13.30 kg/100 | ||
| 56 S-HW-E | 56 mm | 56 mm | 1 5/8 inch | 106 mm | 1 | 17.50 kg/100 | ||
| 20/2 S-HW-E | 20 mm | 20 mm | 1/2 inch | 73 mm | 2 | 7.44 kg/100 | ||
| 32/2 S-HW-E | 32 mm | 32 mm | 7/8 inch | 102 mm | 2 | 13.50 kg/100 | ||
| 44/2 S-HW-E | 44 mm | 44 mm | 1 1/4 inch | 129 mm | 2 | 20.10 kg/100 | ||
| 56/2 S-HW-E | 56 mm | 56 mm | 1 5/8 inch | 164 mm | 2 | 26.80 kg/100 | ||
| 20/3 S-HW-E | 20 mm | 20 mm | 1/2 inch | 93 mm | 3 | 9.30 kg/100 | ||
| 32/3 S-HW-E | 32 mm | 32 mm | 7/8 inch | 136 mm | 3 | 17.70 kg/100 | ||
| 44/3 S-HW-E | 44 mm | 44 mm | 1 1/4 inch | 176 mm | 3 | 26.90 kg/100 |
