LGIB 60

cable ladder inside bend, height = 60 mm

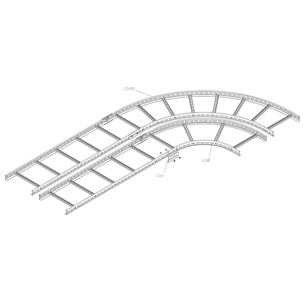

cable ladder inside bend 90 for horizontal change of direction

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

Артикул	Product	height	width	radius
LGIB 60-20F	60 mm	200 mm	400 mm	3 kg
LGIB 60-30F	60 mm	300 mm	400 mm	3.47 kg
LGIB 60-40F	60 mm	400 mm	400 mm	3.95 kg
LGIB 60-50F	60 mm	500 mm	400 mm	5.16 kg
LGIB 60-60F	60 mm	600 mm	400 mm	5.78 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Артикул	Product	height	width	radius
LGIB 60-20E	60 mm	200 mm	400 mm	2.82 kg
LGIB 60-30E	60 mm	300 mm	400 mm	3.27 kg
LGIB 60-40E	60 mm	400 mm	400 mm	3.72 kg
LGIB 60-50E	60 mm	500 mm	400 mm	4.85 kg
LGIB 60-60E	60 mm	600 mm	400 mm	5.44 kg
