LGG 60

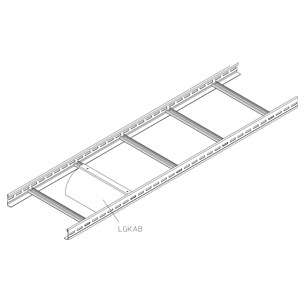

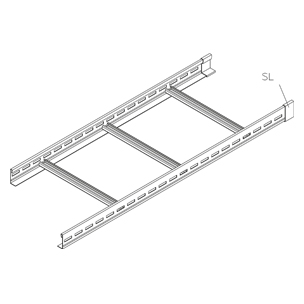

Cable ladder with continuously perforated side beams. Welded rungs made of profile rail 30x15 mm. Electrical conductivity tested according to DIN EN 61537.
This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish. The value Pmax applies when the ladder is used as vertical ladder.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
Stainless steel, according to ASTM 304 / BS 304 S 3
| Артикул | Product | height | width | length |
A
cross section area
|
QLK
distributed load power cable
|
Pmax
Maximum load
| weight | |
|---|---|---|---|---|---|---|---|---|---|
| LGG 60-20-3S | 60 mm | 200 mm | 3000 mm | 81 cm² | 0.23 kN/m | 1.50 kN | 7.92 kg | ||
| LGG 60-30-3S | 60 mm | 300 mm | 3000 mm | 122 cm² | 0.34 kN/m | 1.50 kN | 8.61 kg | ||
| LGG 60-40-3S | 60 mm | 400 mm | 3000 mm | 162 cm² | 0.45 kN/m | 1.50 kN | 9.30 kg | ||
| LGG 60-50-3S | 60 mm | 500 mm | 3000 mm | 203 cm² | 0.57 kN/m | 1.50 kN | 9.98 kg | ||
| LGG 60-60-3S | 60 mm | 600 mm | 3000 mm | 243 cm² | 0.68 kN/m | 1.50 kN | 10.67 kg | ||
| LGG 60-20S | 60 mm | 200 mm | 6000 mm | 81 cm² | 0.23 kN/m | 1.50 kN | 15.84 kg | ||
| LGG 60-30S | 60 mm | 300 mm | 6000 mm | 122 cm² | 0.34 kN/m | 1.50 kN | 17.22 kg | ||
| LGG 60-40S | 60 mm | 400 mm | 6000 mm | 162 cm² | 0.45 kN/m | 1.50 kN | 18.59 kg | ||
| LGG 60-50S | 60 mm | 500 mm | 6000 mm | 203 cm² | 0.57 kN/m | 1.50 kN | 19.96 kg | ||
| LGG 60-60S | 60 mm | 600 mm | 6000 mm | 243 cm² | 0.68 kN/m | 1.50 kN | 21.34 kg |
| Артикул | Product | height | width | length |
A
cross section area
|
QLK
distributed load power cable
|
Pmax
Maximum load
| weight | |
|---|---|---|---|---|---|---|---|---|---|
| LGG 60-20-3F | 60 mm | 200 mm | 3000 mm | 81 cm² | 0.23 kN/m | 1.50 kN | 8.48 kg | ||
| LGG 60-30-3F | 60 mm | 300 mm | 3000 mm | 122 cm² | 0.34 kN/m | 1.50 kN | 9.21 kg | ||
| LGG 60-40-3F | 60 mm | 400 mm | 3000 mm | 162 cm² | 0.45 kN/m | 1.50 kN | 9.95 kg | ||
| LGG 60-50-3F | 60 mm | 500 mm | 3000 mm | 203 cm² | 0.57 kN/m | 1.50 kN | 10.68 kg | ||
| LGG 60-60-3F | 60 mm | 600 mm | 3000 mm | 243 cm² | 0.68 kN/m | 1.50 kN | 11.42 kg | ||
| LGG 60-20F | 60 mm | 200 mm | 6000 mm | 81 cm² | 0.23 kN/m | 1.50 kN | 16.95 kg | ||
| LGG 60-30F | 60 mm | 300 mm | 6000 mm | 122 cm² | 0.34 kN/m | 1.50 kN | 18.42 kg | ||
| LGG 60-40F | 60 mm | 400 mm | 6000 mm | 162 cm² | 0.45 kN/m | 1.50 kN | 19.89 kg | ||
| LGG 60-50F | 60 mm | 500 mm | 6000 mm | 203 cm² | 0.57 kN/m | 1.50 kN | 21.36 kg | ||
| LGG 60-60F | 60 mm | 600 mm | 6000 mm | 243 cm² | 0.68 kN/m | 1.50 kN | 22.83 kg |
| Артикул | Product | height | width | length |
A
cross section area
|
QLK
distributed load power cable
|
Pmax
Maximum load
| weight | |
|---|---|---|---|---|---|---|---|---|---|
| LGG 60-20-3E | 60 mm | 200 mm | 3000 mm | 81 cm² | 0.23 kN/m | 1.50 kN | 7.97 kg | ||
| LGG 60-30-3E | 60 mm | 300 mm | 3000 mm | 122 cm² | 0.34 kN/m | 1.50 kN | 8.66 kg | ||
| LGG 60-40-3E | 60 mm | 400 mm | 3000 mm | 162 cm² | 0.45 kN/m | 1.50 kN | 9.35 kg | ||
| LGG 60-50-3E | 60 mm | 500 mm | 3000 mm | 203 cm² | 0.57 kN/m | 1.50 kN | 10.05 kg | ||
| LGG 60-60-3E | 60 mm | 600 mm | 3000 mm | 243 cm² | 0.68 kN/m | 1.50 kN | 10.74 kg | ||
| LGG 60-20E | 60 mm | 200 mm | 6000 mm | 81 cm² | 0.23 kN/m | 1.50 kN | 15.95 kg | ||
| LGG 60-30E | 60 mm | 300 mm | 6000 mm | 122 cm² | 0.34 kN/m | 1.50 kN | 17.33 kg | ||
| LGG 60-40E | 60 mm | 400 mm | 6000 mm | 162 cm² | 0.45 kN/m | 1.50 kN | 18.71 kg | ||
| LGG 60-50E | 60 mm | 500 mm | 6000 mm | 203 cm² | 0.57 kN/m | 1.50 kN | 20.09 kg | ||
| LGG 60-60E | 60 mm | 600 mm | 6000 mm | 243 cm² | 0.68 kN/m | 1.50 kN | 21.47 kg |
