R 110

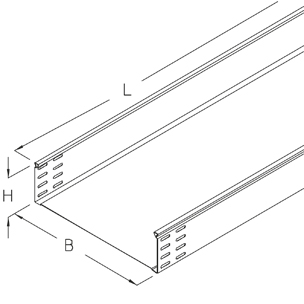

cable tray, unperforated, height = 110 mm

cable tray not perforated, head shape suitable for positive locking covers, certified including electrical conductivity according to DIN EN 61537

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Артикул	Product	height	width	length	t material thickness	A cross section area	QSK distributed load control cable
R 110-10S	110 mm	100 mm	3000 mm	0.75 mm	107 cm²	0.16 kN/m	6.30 kg
R 110-20S	110 mm	200 mm	3000 mm	0.75 mm	217 cm²	0.33 kN/m	8.10 kg
R 110-30S	110 mm	300 mm	3000 mm	0.88 mm	327 cm²	0.49 kN/m	11.60 kg
R 110-40S	110 mm	400 mm	3000 mm	1.00 mm	437 cm²	0.66 kN/m	15.50 kg
R 110-50S	110 mm	500 mm	3000 mm	1.00 mm	547 cm²	0.82 kN/m	17.80 kg
R 110-60S	110 mm	600 mm	3000 mm	1.00 mm	657 cm²	0.99 kN/m	20.20 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

Артикул	Product	height	width	length	t material thickness	A cross section area	QSK distributed load control cable
R 110-10F	110 mm	100 mm	3000 mm	0.75 mm	107 cm²	0.16 kN/m	7.10 kg
R 110-20F	110 mm	200 mm	3000 mm	0.75 mm	217 cm²	0.33 kN/m	9.10 kg
R 110-30F	110 mm	300 mm	3000 mm	0.88 mm	327 cm²	0.49 kN/m	12.80 kg
R 110-40F	110 mm	400 mm	3000 mm	1.00 mm	437 cm²	0.66 kN/m	16.90 kg
R 110-50F	110 mm	500 mm	3000 mm	1.00 mm	547 cm²	0.82 kN/m	19.40 kg
R 110-60F	110 mm	600 mm	3000 mm	1.00 mm	657 cm²	0.99 kN/m	22.00 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Артикул	Product	height	width	length	t material thickness	A cross section area	QSK distributed load control cable
R 110-10E	110 mm	100 mm	3000 mm	0.80 mm	107 cm²	0.16 kN/m	6.70 kg
R 110-20E	110 mm	200 mm	3000 mm	0.80 mm	217 cm²	0.33 kN/m	8.80 kg
R 110-30E	110 mm	300 mm	3000 mm	0.80 mm	327 cm²	0.49 kN/m	10.80 kg
R 110-40E	110 mm	400 mm	3000 mm	1.00 mm	437 cm²	0.66 kN/m	14.90 kg
R 110-50E	110 mm	500 mm	3000 mm	1.00 mm	547 cm²	0.82 kN/m	17.90 kg
R 110-60E	110 mm	600 mm	3000 mm	1.00 mm	657 cm²	0.99 kN/m	20.30 kg

Load Diagram
