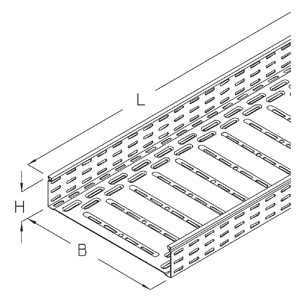

RG 85
cable tray perforated, head shape suitable for positive locking covers, with longitudinal and lateral reinforcing rims reducing bottom deflection, certified including electrical conductivity according to DIN EN 61537
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| Артикул | Product | height | width | length |
t
material thickness
|
A
cross section area
|
QSK
distributed load control cable
| weight | |
|---|---|---|---|---|---|---|---|---|---|
| RG 85-10S | 85 mm | 100 mm | 3000 mm | 0.75 mm | 82 cm² | 0.12 kN/m | 5.00 kg | ||
| RG 85-20S | 85 mm | 200 mm | 3000 mm | 0.75 mm | 167 cm² | 0.25 kN/m | 6.50 kg | ||
| RG 85-30S | 85 mm | 300 mm | 3000 mm | 0.88 mm | 252 cm² | 0.38 kN/m | 9.60 kg | ||
| RG 85-40S | 85 mm | 400 mm | 3000 mm | 0.88 mm | 337 cm² | 0.51 kN/m | 11.60 kg | ||
| RG 85-50S | 85 mm | 500 mm | 3000 mm | 1.00 mm | 422 cm² | 0.63 kN/m | 15.20 kg | ||
| RG 85-60S | 85 mm | 600 mm | 3000 mm | 1.00 mm | 507 cm² | 0.76 kN/m | 17.60 kg |
| Артикул | Product | height | width | length |
t
material thickness
|
A
cross section area
|
QSK
distributed load control cable
| weight | |
|---|---|---|---|---|---|---|---|---|---|
| RG 85-10F | 85 mm | 100 mm | 3000 mm | 0.75 mm | 82 cm² | 0.12 kN/m | 6.00 kg | ||
| RG 85-20F | 85 mm | 200 mm | 3000 mm | 0.75 mm | 167 cm² | 0.25 kN/m | 7.20 kg | ||
| RG 85-30F | 85 mm | 300 mm | 3000 mm | 0.88 mm | 252 cm² | 0.38 kN/m | 10.60 kg | ||
| RG 85-40F | 85 mm | 400 mm | 3000 mm | 0.88 mm | 337 cm² | 0.51 kN/m | 12.90 kg | ||
| RG 85-50F | 85 mm | 500 mm | 3000 mm | 1.00 mm | 422 cm² | 0.63 kN/m | 16.60 kg | ||
| RG 85-60F | 85 mm | 600 mm | 3000 mm | 1.00 mm | 507 cm² | 0.76 kN/m | 18.40 kg |
