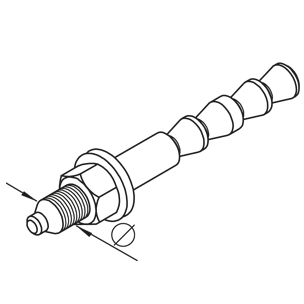

VAB-HB
Permissible as single fastening. Permissible load in cracked and non-cracked normal concrete of strength ≥ C20/25. Manufacturer’s information has to be observed strictly (ETA-05/0164).
galvanized, according to ISO 4042
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Артикул | Product |
Lmin
Minimum drilling depth
| diameter | diameter |

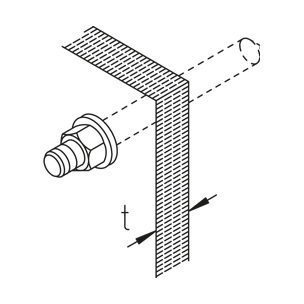

t
material thickness
|
Pzul
permissible tractive force
| weight | |
|---|---|---|---|---|---|---|---|---|
| VAB-HB 10/20 | 75 mm | 10 mm | 10 mm | 0-20 mm | 8 kN | 0.07 kg | ||
| VAB-HB 12/25 | 90 mm | 12 mm | 12 mm | 0-25 mm | 11.10 kN | 0.12 kg | ||
| VAB-HB 16/30 | 110 mm | 16 mm | 16 mm | 0-30 mm | 15.90 kN | 0.30 kg |
| Артикул | Product |
Lmin
Minimum drilling depth
| diameter | diameter |
t
material thickness
|
Pzul
permissible tractive force
| weight | |
|---|---|---|---|---|---|---|---|---|
| VAB-HB 10/20E4 | 75 mm | 10 mm | 10 mm | 0-20 mm | 8 kN | 0.07 kg | ||
| VAB-HB 12/25E4 | 90 mm | 12 mm | 12 mm | 0-25 mm | 11.10 kN | 0.12 kg | ||
| VAB-HB 16/30E4 | 110 mm | 16 mm | 16 mm | 0-30 mm | 15.90 kN | 0.30 kg |
