BKAADR-WZB S
floor duct attachment branch cover, made of aluminium chequered plate with turning bolts.
The cover consists of a 2 mm thick galvanized sheet steel with an aluminum sheet support with non-slip embossing and slip resistance R10 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| Артикул | Product | width |

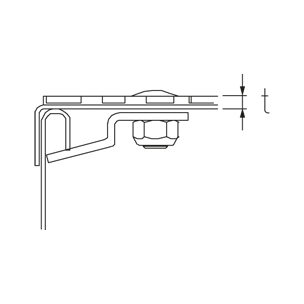

t
material thickness
|
Pmax
Maximum load
| weight |
slip resistance class
slip resistance according to DIN 51130
| |
|---|---|---|---|---|---|---|---|
| BKAADR-WZB 10S | 100 mm | 2.00 mm | 5 kN | 0.28 kg | R10 | ||
| BKAADR-WZB 15S | 150 mm | 2.00 mm | 5 kN | 0.34 kg | R10 | ||
| BKAADR-WZB 20S | 200 mm | 2.00 mm | 5 kN | 0.40 kg | R10 | ||
| BKAADR-WZB 30S | 300 mm | 2.00 mm | 5 kN | 0.52 kg | R10 | ||
| BKAADR-WZB 40S | 400 mm | 2.00 mm | 5 kN | 0.65 kg | R10 | ||
| BKAADR-WZB 50S | 500 mm | 2.00 mm | 5 kN | 0.79 kg | R10 | ||
| BKAADR-WZB 60S | 600 mm | 2.00 mm | 5 kN | 0.92 kg | R10 |
