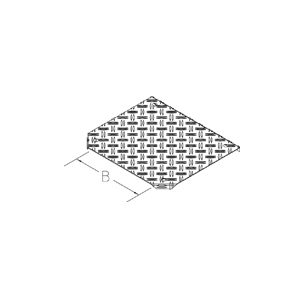

BKADR-WZB AL

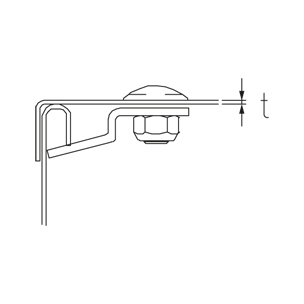

floor duct branch cover made of aluminium chequered plate with turning bolts.
The cover consists of a 2.5 mm thick aluminum sheet with 1.5 mm anti-slip embossing and slip resistance R10 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 300 kg according to EN 50085-2-2.
Aluminium
| Артикул | Product | width |
t
material thickness
|
Pmax
Maximum load
| weight |
slip resistance class
slip resistance according to DIN 51130
| |
|---|---|---|---|---|---|---|---|
| BKADR-WZB 10AL | 100 mm | 2.50 mm | 3 kN | 0.33 kg | R10 | ||
| BKADR-WZB 15AL | 150 mm | 2.50 mm | 3 kN | 0.50 kg | R10 | ||
| BKADR-WZB 20AL | 200 mm | 2.50 mm | 3 kN | 0.71 kg | R10 | ||
| BKADR-WZB 30AL | 300 mm | 2.50 mm | 3 kN | 1.22 kg | R10 | ||
| BKADR-WZB 40AL | 400 mm | 2.50 mm | 3 kN | 1.87 kg | R10 | ||
| BKADR-WZB 50AL | 500 mm | 2.50 mm | 3 kN | 2.67 kg | R10 | ||
| BKADR-WZB 60AL | 600 mm | 2.50 mm | 3 kN | 3.62 kg | R10 |
