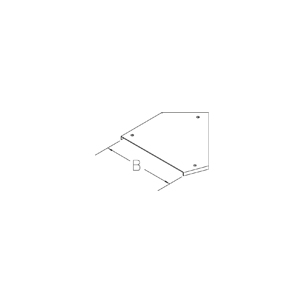

BKBDR45
In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| Артикул | Product | width |
t
material thickness
|
Pmax
Maximum load
| weight | |
|---|---|---|---|---|---|---|
| BKBDR45 10S | 100 mm | 2.00 mm | 5 kN | 0.33 kg | ||
| BKBDR45 15S | 150 mm | 2.00 mm | 5 kN | 0.49 kg | ||
| BKBDR45 20S | 200 mm | 2.00 mm | 5 kN | 0.69 kg | ||
| BKBDR45 30S | 300 mm | 2.00 mm | 5 kN | 1.18 kg | ||
| BKBDR45 40S | 400 mm | 2.00 mm | 5 kN | 1.79 kg | ||
| BKBDR45 50S | 500 mm | 2.00 mm | 5 kN | 2.54 kg | ||
| BKBDR45 60S | 600 mm | 2.00 mm | 5 kN | 3.42 kg |
