BKBDR45-WZB AL

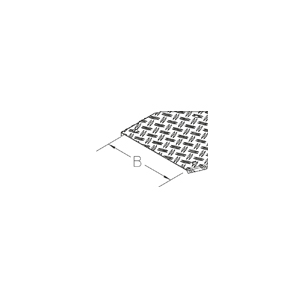

cover made of aluminium chequered plate with turning bolts for floor duct bend 45°

The cover consists of a 2.5 mm thick aluminum sheet with 1.5 mm anti-slip embossing and slip resistance R10 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 300 kg according to EN 50085-2-2.

Aluminium
АртикулProductwidth

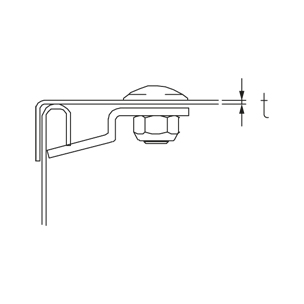

t
material thickness
Pmax
Maximum load
weight
slip resistance class
slip resistance according to DIN 51130
BKBDR45-WZB 10AL100 mm2.50 mm3 kN0.19 kgR10
BKBDR45-WZB 15AL150 mm2.50 mm3 kN0.26 kgR10
BKBDR45-WZB 20AL200 mm2.50 mm3 kN0.36 kgR10
BKBDR45-WZB 30AL300 mm2.50 mm3 kN0.58 kgR10
BKBDR45-WZB 40AL400 mm2.50 mm3 kN0.93 kgR10
BKBDR45-WZB 50AL500 mm2.50 mm3 kN1.22 kgR10
BKBDR45-WZB 60AL600 mm2.50 mm3 kN1.64 kgR10
