BKBRDR
In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| Артикул | Product | width |

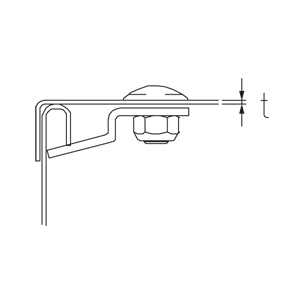

t
material thickness
|
Pmax
Maximum load
| weight | |
|---|---|---|---|---|---|---|
| BKBRDR 10S | 100 mm | 2.00 mm | 5 kN | 0.99 kg | ||
| BKBRDR 15S | 150 mm | 2.00 mm | 5 kN | 1.48 kg | ||
| BKBRDR 20S | 200 mm | 2.00 mm | 5 kN | 2.05 kg | ||
| BKBRDR 30S | 300 mm | 2.00 mm | 5 kN | 3.42 kg | ||
| BKBRDR 40S | 400 mm | 2.00 mm | 5 kN | 5.11 kg | ||
| BKBRDR 50S | 500 mm | 2.00 mm | 5 kN | 7.11 kg | ||
| BKBRDR 60S | 600 mm | 2.00 mm | 5 kN | 9.43 kg |
