BKDR-WZB AL

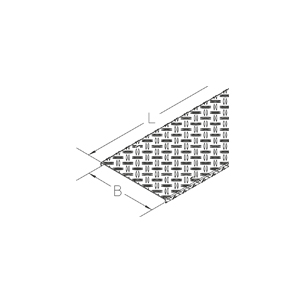

The cover consists of a 2.5 mm thick aluminum sheet with 1.5 mm anti-slip embossing and slip resistance R10 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 300 kg according to EN 50085-2-2.
Aluminium
| Артикул | Product | width | length |
t
material thickness
|
Pmax
Maximum load
| weight |
slip resistance class
slip resistance according to DIN 51130
| |
|---|---|---|---|---|---|---|---|---|
| BKDR-WZB 10AL | 100 mm | 3000 mm | 2.50 mm | 3 kN | 2.99 kg | R10 | ||
| BKDR-WZB 15AL | 150 mm | 3000 mm | 2.50 mm | 3 kN | 4.13 kg | R10 | ||
| BKDR-WZB 20AL | 200 mm | 3000 mm | 2.50 mm | 3 kN | 5.26 kg | R10 | ||
| BKDR-WZB 30AL | 300 mm | 3000 mm | 2.50 mm | 3 kN | 7.53 kg | R10 | ||
| BKDR-WZB 40AL | 400 mm | 3000 mm | 2.50 mm | 3 kN | 9.79 kg | R10 | ||
| BKDR-WZB 50AL | 500 mm | 3000 mm | 2.50 mm | 3 kN | 12.06 kg | R10 | ||
| BKDR-WZB 60AL | 600 mm | 3000 mm | 2.50 mm | 3 kN | 14.33 kg | R10 | ||
| BKDR-WZB 1.5-10AL | 100 mm | 1500 mm | 2.50 mm | 3 kN | 1.51 kg | R10 | ||
| BKDR-WZB 1.5-15AL | 150 mm | 1500 mm | 2.50 mm | 3 kN | 2.06 kg | R10 | ||
| BKDR-WZB 1.5-20AL | 200 mm | 1500 mm | 2.50 mm | 3 kN | 2.61 kg | R10 | ||
| BKDR-WZB 1.5-30AL | 300 mm | 1500 mm | 2.50 mm | 3 kN | 3.72 kg | R10 | ||
| BKDR-WZB 1.5-40AL | 400 mm | 1500 mm | 2.50 mm | 3 kN | 4.82 kg | R10 | ||
| BKDR-WZB 1.5-50AL | 500 mm | 1500 mm | 2.50 mm | 3 kN | 5.93 kg | R10 | ||
| BKDR-WZB 1.5-60AL | 600 mm | 1500 mm | 2.50 mm | 3 kN | 7.03 kg | R10 | ||
| BKDR-WZB 1-10AL | 100 mm | 1000 mm | 2.50 mm | 3 kN | 1.03 kg | R10 | ||
| BKDR-WZB 1-15AL | 150 mm | 1000 mm | 2.50 mm | 3 kN | 1.50 kg | R10 | ||
| BKDR-WZB 1-20AL | 200 mm | 1000 mm | 2.50 mm | 3 kN | 1.77 kg | R10 | ||
| BKDR-WZB 1-30AL | 300 mm | 1000 mm | 2.50 mm | 3 kN | 2.50 kg | R10 | ||
| BKDR-WZB 1-40AL | 400 mm | 1000 mm | 2.50 mm | 3 kN | 3.24 kg | R10 | ||
| BKDR-WZB 1-50AL | 500 mm | 1000 mm | 2.50 mm | 3 kN | 3.98 kg | R10 | ||
| BKDR-WZB 1-60AL | 600 mm | 1000 mm | 2.50 mm | 3 kN | 4.71 kg | R10 |
