BKB 100

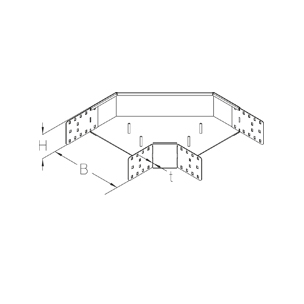

floor duct bend 90 for horizontal change of direction with integrated connectors
From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| Артикул | Product | height | width |
t
material thickness
| weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|
| BKB 100-10S | 100 mm | 100 mm | 2.00 mm | 1.84 kg | show all inclusive accessoires | |||
| BKB 100-15S | 100 mm | 150 mm | 2.00 mm | 2.30 kg | show all inclusive accessoires | |||
| BKB 100-20S | 100 mm | 200 mm | 2.00 mm | 2.71 kg | show all inclusive accessoires | |||
| BKB 100-30S | 100 mm | 300 mm | 2.00 mm | 3.82 kg | show all inclusive accessoires | |||
| BKB 100-40S | 100 mm | 400 mm | 2.00 mm | 5.21 kg | show all inclusive accessoires | |||
| BKB 100-50S | 100 mm | 500 mm | 2.00 mm | 6.83 kg | show all inclusive accessoires | |||
| BKB 100-60S | 100 mm | 600 mm | 2.00 mm | 8.74 kg | show all inclusive accessoires |
