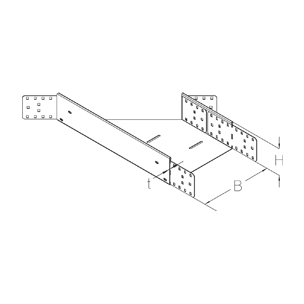

BKGR 110
From a width ≥ 300 mm, one separating strip must be installed. From a width of ≥ 500 mm, two separating strips must be installed.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| Артикул | Product | height | width |
t
material thickness
| weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|
| BKGR 110-10S | 110 mm | 100 mm | 2.00 mm | 2.88 kg | show all inclusive accessoires | |||
| BKGR 110-15S | 110 mm | 150 mm | 2.00 mm | 3.25 kg | show all inclusive accessoires | |||
| BKGR 110-20S | 110 mm | 200 mm | 2.00 mm | 3.66 kg | show all inclusive accessoires | |||
| BKGR 110-30S | 110 mm | 300 mm | 2.00 mm | 4.60 kg | show all inclusive accessoires | |||
| BKGR 110-40S | 110 mm | 400 mm | 2.00 mm | 5.71 kg | show all inclusive accessoires | |||
| BKGR 110-50S | 110 mm | 500 mm | 2.00 mm | 6.99 kg | show all inclusive accessoires | |||
| BKGR 110-60S | 110 mm | 600 mm | 2.00 mm | 8.36 kg | show all inclusive accessoires |
