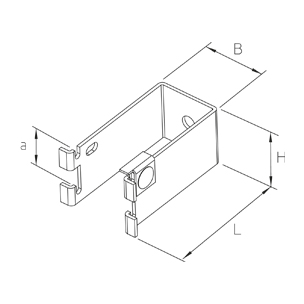

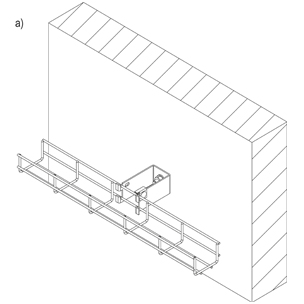

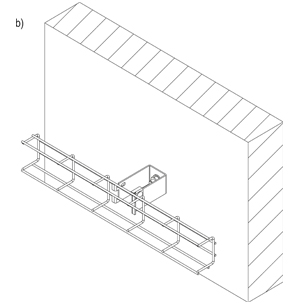

Spacer bar for horizontal wall mounting of mesh cable trays. Suitable for mounting on the lateral longitudinal wires of the mesh cable trays G 50 and G 100 up to a width of 116 mm and the GI up to a width of 76 mm (fig. a). Spacer bar for horizontal-vertical wall fastening of mesh cable trays. Suitable for mounting on the longitudinal wires in the bottom of the mesh cable trays G 50 and G 100 up to a width of 216 mm and the GI up to a width of 136 mm (fig. b). From a width of 216 mm, two spacer bars are required for mounting the G 50, G 100 and GI.

The support distance is to be chosen according to the local conditions, maximum 1 m.
