GBH 50

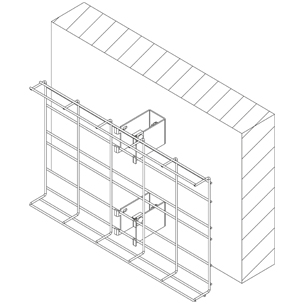

Spacer bar for horizontal-vertical wall fastening of mesh cable trays. Suitable for mounting on the longitudinal wires in the bottom of the mesh cablte trays G 50 and G 100 from a width of 316 mm. Two spacer bars are necessary for mounting.
The support distance is to be chosen according to the local conditions, maximum 1 m.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
Stainless steel, according to ASTM 304 / BS 304 S 3

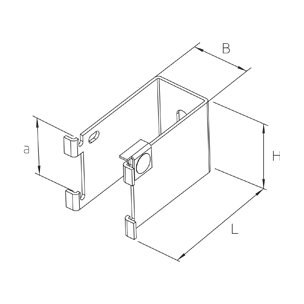

Артикул | Product | height | width | length |
a
wire distance
| weight | incl. | Включает | |
---|---|---|---|---|---|---|---|---|---|
GBH 50S | 65 mm | 50 mm | 100 mm | 50 mm | 0.37 kg | show all inclusive accessoires |
Артикул | Product | height | width | length |
a
wire distance
| weight | incl. | Включает | |
---|---|---|---|---|---|---|---|---|---|
GBH 50F | 65 mm | 50 mm | 100 mm | 50 mm | 0.34 kg | show all inclusive accessoires |
Артикул | Product | height | width | length |
a
wire distance
| weight | incl. | Включает | |
---|---|---|---|---|---|---|---|---|---|
GBH 50E | 65 mm | 50 mm | 100 mm | 50 mm | 0.37 kg | show all inclusive accessoires |
