GVR
Usable on mesh cable trays with a wire spacing of 100 mm. Universal use of the snap connector for side or bottom connections. Screwless assembly/disassembly. Backlash-free versions for Ø4 mm and Ø4.5 mm wire thickness.
The mesh cable tray snap-in connector is suitable for wire mesh cable trays type G 50 and G 100.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
Stainless steel, according to ASTM 304 / BS 304 S 3
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

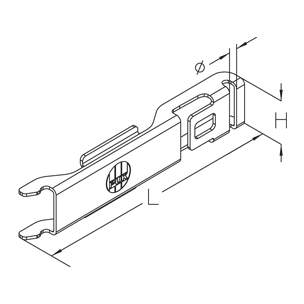

| Артикул | Product | height | length | diameter | weight | ||
|---|---|---|---|---|---|---|---|
| GVR 4.0S | 26 mm | 131 mm | 4.00 mm | 0.05 kg |
| Артикул | Product | height | length | diameter | weight | ||
|---|---|---|---|---|---|---|---|
| GVR 4.0E | 26 mm | 131 mm | 4.00 mm | 0.05 kg |
| Артикул | Product | height | length | diameter | weight | ||
|---|---|---|---|---|---|---|---|
| GVR 4.0E4 | 26 mm | 131 mm | 4.00 mm | 0.05 kg |
