GTD 30

mesh cable tray, W-shape, height = 50 mm

Mesh cable tray, W-shape, for mounting directly to ceiling.

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

galvanized, according to ISO 4042

Артикул	Product	height	width	length	t material thickness	A cross section area	QSK distributed load control cable	weight
GTD 30GV	50 mm	300 mm	3000 mm	4.50 mm	85 cm²	0.13 kN/m	3.01 kg

Pre-galvanised (DIN EN 10244-2)

Артикул	Product	height	width	length	t material thickness	A cross section area	QSK distributed load control cable	weight
GTD 30S	50 mm	300 mm	3000 mm	4.50 mm	85 cm²	0.13 kN/m	3.01 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

Артикул	Product	height	width	length	t material thickness	A cross section area	QSK distributed load control cable	weight
GTD 30F	50 mm	300 mm	3000 mm	4.50 mm	85 cm²	0.13 kN/m	3.22 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Артикул	Product	height	width	length	t material thickness	A cross section area	QSK distributed load control cable	weight
GTD 30E	50 mm	300 mm	3000 mm	4.50 mm	85 cm²	0.13 kN/m	3.03 kg

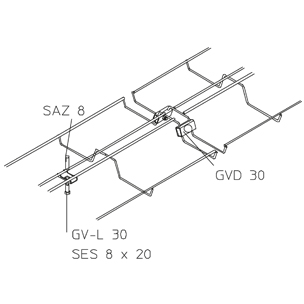

Details / Applications

Accessories
