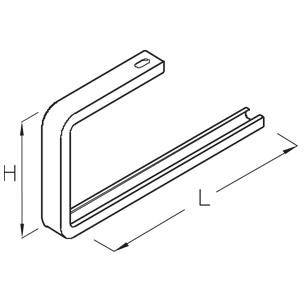

ceiling fixed bracket, profile rail 30x15 mm

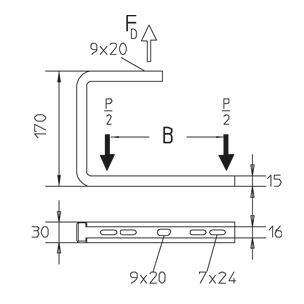

FD/P: coefficient for calculation of the dowel load FD with effective bracket load P respectively the sum of effective bracket loads. This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
Stainless steel, according to ASTM 304 / BS 304 S 3
| Артикул | Product | height | width | length |
Pmax
Maximum load
|
FD/P
dowel-to-anchor load
| weight | |
|---|---|---|---|---|---|---|---|---|
| DB 10S | 170 mm | 100 mm | 110 mm | 0.60 kN | 1.20 | 0.25 kg | ||
| DB 20S | 170 mm | 200 mm | 210 mm | 0.40 kN | 1.10 | 0.36 kg | ||
| DB 30S | 170 mm | 300 mm | 310 mm | 0.28 kN | 1.10 | 0.47 kg |
| Артикул | Product | height | width | length |
Pmax
Maximum load
|
FD/P
dowel-to-anchor load
| weight | |
|---|---|---|---|---|---|---|---|---|
| DB 10E | 170 mm | 100 mm | 110 mm | 0.50 kN | 1.20 | 0.30 kg | ||
| DB 20E | 170 mm | 200 mm | 210 mm | 0.35 kN | 1.10 | 0.44 kg | ||
| DB 30E | 170 mm | 300 mm | 310 mm | 0.25 kN | 1.10 | 0.58 kg |
