BGUDW

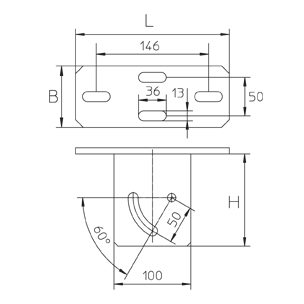

Head plate for mounting of bracket support profile U40/ U57/ U60 to ceiling. For angled connection 30° - 90°.
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Артикул | Product | height | width | length | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|
| BGUDW F | 120 mm | 80 mm | 200 mm | 1.33 kg | show all inclusive accessoires |
| Артикул | Product | height | width | length | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|
| BGUDW E4 | 120 mm | 80 mm | 200 mm | 1.24 kg | show all inclusive accessoires |
