KDU 40
Ceiling bracket support, U-profile 40x30x2 mm, continuously three-way perforated, with welded head plate (material thickness t), certified according to DIN EN 61537.

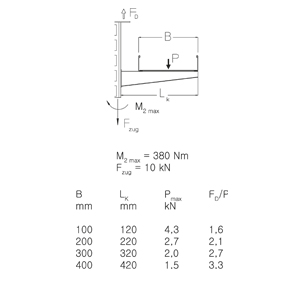

FD/P: coefficient for calculation of the dowel load FD with effective bracket load P. The permissible loads are achieved by means of a support piece. A support piece must be used from a console length of 400 mm or when mounting in the end area of the ceiling stem. For console lengths < 400 mm without using the support piece, the permissible loads must be reduced by 30 %.
galvanized, according to ISO 4042
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
Stainless steel, according to ASTM 304 / BS 304 S 3
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Артикул | Product | length |
t
material thickness
| weight | |
|---|---|---|---|---|---|
| KDU 40-02GV | 200 mm | 4.00 mm | 0.36 kg | ||
| KDU 40-03GV | 300 mm | 4.00 mm | 0.47 kg | ||
| KDU 40-04GV | 400 mm | 4.00 mm | 0.58 kg | ||
| KDU 40-05GV | 500 mm | 4.00 mm | 0.68 kg | ||
| KDU 40-06GV | 600 mm | 4.00 mm | 0.80 kg | ||
| KDU 40-07GV | 700 mm | 4.00 mm | 0.92 kg | ||
| KDU 40-08GV | 800 mm | 4.00 mm | 1.03 kg | ||
| KDU 40-09GV | 900 mm | 4.00 mm | 1.14 kg | ||
| KDU 40-10GV | 1000 mm | 4.00 mm | 1.25 kg | ||
| KDU 40-11GV | 1100 mm | 4.00 mm | 1,36 kg | ||
| KDU 40-12GV | 1200 mm | 4.00 mm | 1.48 kg | ||
| KDU 40-13GV | 1300 mm | 4.00 mm | 1.59 kg | ||
| KDU 40-14GV | 1400 mm | 4.00 mm | 1.70 kg | ||
| KDU 40-15GV | 1500 mm | 4.00 mm | 1.81 kg |
| Артикул | Product | length |
t
material thickness
| weight | |
|---|---|---|---|---|---|
| KDU 40-02F | 200 mm | 4.00 mm | 0.38 kg | ||
| KDU 40-03F | 300 mm | 4.00 mm | 0.50 kg | ||
| KDU 40-04F | 400 mm | 4.00 mm | 0.62 kg | ||
| KDU 40-05F | 500 mm | 4.00 mm | 0.73 kg | ||
| KDU 40-06F | 600 mm | 4.00 mm | 0.86 kg | ||
| KDU 40-07F | 700 mm | 4.00 mm | 0.98 kg | ||
| KDU 40-08F | 800 mm | 4.00 mm | 1.10 kg | ||
| KDU 40-09F | 900 mm | 4.00 mm | 1.22 kg | ||
| KDU 40-10F | 1000 mm | 4.00 mm | 1.34 kg | ||
| KDU 40-11F | 1100 mm | 4.00 mm | 1.46 kg | ||
| KDU 40-12F | 1200 mm | 4.00 mm | 1.58 kg | ||
| KDU 40-13F | 1300 mm | 4.00 mm | 1.70 kg | ||
| KDU 40-14F | 1400 mm | 4.00 mm | 1.82 kg | ||
| KDU 40-15F | 1500 mm | 4.00 mm | 1.94 kg |
| Артикул | Product | length |
t
material thickness
| weight | |
|---|---|---|---|---|---|
| KDU 40-02E | 200 mm | 4.00 mm | 0.36 kg | ||
| KDU 40-03E | 300 mm | 4.00 mm | 0.47 kg | ||
| KDU 40-04E | 400 mm | 4.00 mm | 0.60 kg | ||
| KDU 40-05E | 500 mm | 4.00 mm | 0.70 kg | ||
| KDU 40-06E | 600 mm | 4.00 mm | 0.81 kg | ||
| KDU 40-07E | 700 mm | 4.00 mm | 0.92 kg | ||
| KDU 40-08E | 800 mm | 4.00 mm | 1.03 kg | ||
| KDU 40-09E | 900 mm | 4.00 mm | 1.15 kg | ||
| KDU 40-10E | 1000 mm | 4.00 mm | 1.26 kg | ||
| KDU 40-11E | 1100 mm | 4.00 mm | 1.40 kg | ||
| KDU 40-12E | 1200 mm | 4.00 mm | 1.50 kg | ||
| KDU 40-13E | 1300 mm | 4.00 mm | 1.60 kg | ||
| KDU 40-14E | 1400 mm | 4.00 mm | 1.73 kg | ||
| KDU 40-15E | 1500 mm | 4.00 mm | 1.83 kg |
| Артикул | Product | length |
t
material thickness
| weight | |
|---|---|---|---|---|---|
| KDU 40-02E4 | 200 mm | 4.00 mm | 0.36 kg | ||
| KDU 40-03E4 | 300 mm | 4.00 mm | 0.47 kg | ||
| KDU 40-04E4 | 400 mm | 4.00 mm | 0.60 kg | ||
| KDU 40-05E4 | 500 mm | 4.00 mm | 0.70 kg | ||
| KDU 40-06E4 | 600 mm | 4.00 mm | 0.81 kg | ||
| KDU 40-07E4 | 700 mm | 4.00 mm | 0.92 kg | ||
| KDU 40-08E4 | 800 mm | 4.00 mm | 1.03 kg | ||
| KDU 40-09E4 | 900 mm | 4.00 mm | 1.16 kg | ||
| KDU 40-10E4 | 1000 mm | 4.00 mm | 1.26 kg | ||
| KDU 40-11E4 | 1100 mm | 4.00 mm | 1.40 kg | ||
| KDU 40-12E4 | 1200 mm | 4.00 mm | 1.50 kg | ||
| KDU 40-13E4 | 1300 mm | 4.00 mm | 1.61 kg | ||
| KDU 40-14E4 | 1400 mm | 4.00 mm | 1.73 kg | ||
| KDU 40-15E4 | 1500 mm | 4.00 mm | 1.84 kg |
