KHU 60

bracket support, heavy, 60x40 mm

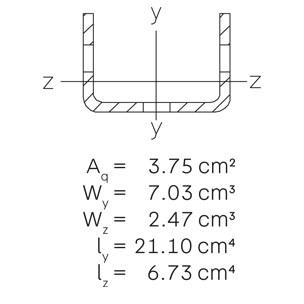

Bracket support, U-profile 60x40x4 mm, continuously three-way perforated.

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish. Higher loads can be achieved by using the support piece.

galvanized, according to ISO 4042

Артикул	Product	height	width	length
KHU 60-06GV	40 mm	60 mm	600 mm	2.03 kg
KHU 60-07GV	40 mm	60 mm	700 mm	2.30 kg
KHU 60-08GV	40 mm	60 mm	800 mm	2.63 kg
KHU 60-15GV	40 mm	60 mm	1500 mm	4.92 kg
KHU 60-20GV	40 mm	60 mm	2000 mm	6.56 kg
KHU 60-30GV	40 mm	60 mm	3000 mm	9.84 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

Артикул	Product	height	width	length
KHU 60-02F	40 mm	60 mm	200 mm	0.70 kg
KHU 60-03F	40 mm	60 mm	300 mm	1.10 kg
KHU 60-04F	40 mm	60 mm	400 mm	1.40 kg
KHU 60-05F	40 mm	60 mm	500 mm	1.80 kg
KHU 60-06F	40 mm	60 mm	600 mm	2.10 kg
KHU 60-07F	40 mm	60 mm	700 mm	2.50 kg
KHU 60-08F	40 mm	60 mm	800 mm	2.80 kg
KHU 60-09F	40 mm	60 mm	900 mm	3.20 kg
KHU 60-10F	40 mm	60 mm	1000 mm	3.50 kg
KHU 60-11F	40 mm	60 mm	1100 mm	3.90 kg
KHU 60-12F	40 mm	60 mm	1200 mm	4.20 kg
KHU 60-13F	40 mm	60 mm	1300 mm	4.60 kg
KHU 60-14F	40 mm	60 mm	1400 mm	4.90 kg
KHU 60-15F	40 mm	60 mm	1500 mm	5.30 kg
KHU 60-20F	40 mm	60 mm	2000 mm	7 kg
KHU 60-30F	40 mm	60 mm	3000 mm	10.50 kg
KHU 60-60F	40 mm	60 mm	6000 mm	21.10 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Артикул	Product	height	width	length	weight
KHU 60-30E	40 mm	60 mm	3000 mm	10.50 kg
KHU 60-60E	40 mm	60 mm	6000 mm	19.93 kg

Details / Applications

Accessories
