KHA 82

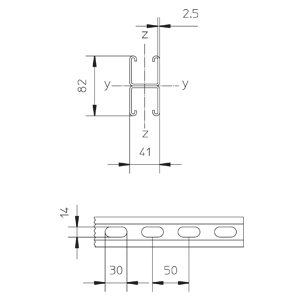

profile rail 41x82 mm, perforated

profile rail 41x82x2.50 mm, with continuous perforation 14x30, welded back to back, slot size 22 mm

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

Артикул	Product	height	width	length	t material thickness	weight
KHA 82-30F	82 mm	41 mm	3000 mm	2.50 mm	15.68 kg
KHA 82-60F	82 mm	41 mm	6000 mm	2.50 mm	31.36 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Артикул	Product	height	width	length	t material thickness	weight
KHA 82-30E	82 mm	41 mm	3000 mm	2.50 mm	14.87 kg
KHA 82-60E	82 mm	41 mm	6000 mm	2.50 mm	29.74 kg

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

Артикул	Product	height	width	length	t material thickness	weight
KHA 82-30E4	82 mm	41 mm	3000 mm	2.50 mm	15.05 kg
KHA 82-60E4	82 mm	41 mm	6000 mm	2.50 mm	30.10 kg
