KHB 7

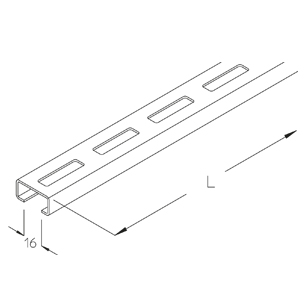

profile rail 30x15 mm, perforated

profile rail 30x15x1.50 mm, with continuous perforation 9x35, slot size 16 mm

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Артикул	Product	height	width	length	t material thickness	weight
KHB 7-30S	15 mm	30 mm	3000 mm	1.50 mm	2.10 kg
KHB 7-60S	15 mm	30 mm	6000 mm	1.50 mm	4.20 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

Артикул	Product	height	width	length	t material thickness	weight
KHB 7-30F	15 mm	30 mm	3000 mm	1.50 mm	2.30 kg
KHB 7-60F	15 mm	30 mm	6000 mm	1.50 mm	4.60 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Артикул	Product	height	width	length	t material thickness
KHB 7-20E	15 mm	30 mm	2000 mm	1.50 mm	1.34 kg
KHB 7-30E	15 mm	30 mm	3000 mm	1.50 mm	2.20 kg
KHB 7-60E	15 mm	30 mm	6000 mm	1.50 mm	4.40 kg
