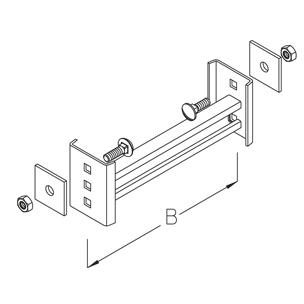

STIS
The producte can be used for fire protection. For technical parameters, see National Technical Test Certificates (abPs).
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| Артикул | Product | width |
Pmax
Maximum load
| weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|
| STIS 02F | 200 mm | 2.50 kN | 0.90 kg | show all inclusive accessoires | |||
| STIS 03F | 300 mm | 2.50 kN | 1.10 kg | show all inclusive accessoires | |||
| STIS 04F | 400 mm | 2.50 kN | 1.20 kg | show all inclusive accessoires | |||
| STIS 05F | 500 mm | 2.50 kN | 1.40 kg | show all inclusive accessoires | |||
| STIS 06F | 600 mm | 2.50 kN | 1.60 kg | show all inclusive accessoires | |||
| STIS 07F | 700 mm | 2.50 kN | 1.70 kg | show all inclusive accessoires | |||
| STIS 08F | 800 mm | 2.50 kN | 1.90 kg | show all inclusive accessoires | |||
| STIS 09F | 900 mm | 2.50 kN | 2.10 kg | show all inclusive accessoires | |||
| STIS 10F | 1000 mm | 2.50 kN | 2.20 kg | show all inclusive accessoires | |||
| STIS 11F | 1100 mm | 2.50 kN | 2.40 kg | show all inclusive accessoires | |||
| STIS 12F | 1200 mm | 2.50 kN | 2.50 kg | show all inclusive accessoires |
