STU 50-3E

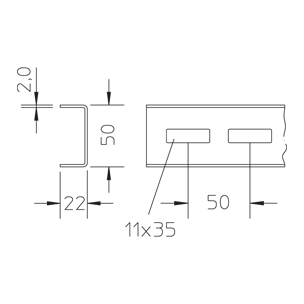

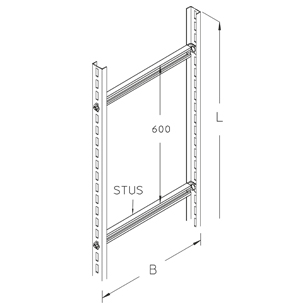

vertical ladder, medium building class, with continuously perforated side beams, for fastening directly to walls, riveted rungs made of profile rails 40x22 mm to be screwed in.
Beams and rungs are delivered not mounted including screws and nuts. This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish. The cover RD can only be mounted in conjunction with the cover extension STD-A.
Stainless steel, according to ASTM 304 / BS 304 S 3
| Артикул | Product | width | length |
Pmax
Maximum load
| weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|
| STU 50-02-3E | 210 mm | 3000 mm | 2.00 kN | 10.40 kg | show all inclusive accessoires | |||
| STU 50-03-3E | 300 mm | 3000 mm | 2.00 kN | 10.90 kg | show all inclusive accessoires | |||
| STU 50-04-3E | 400 mm | 3000 mm | 2.00 kN | 11.40 kg | show all inclusive accessoires | |||
| STU 50-05-3E | 500 mm | 3000 mm | 2.00 kN | 11.90 kg | show all inclusive accessoires | |||
| STU 50-06-3E | 600 mm | 3000 mm | 2.00 kN | 12.40 kg | show all inclusive accessoires | |||
| STU 50-07-3E | 700 mm | 3000 mm | 2.00 kN | 12.90 kg | show all inclusive accessoires | |||
| STU 50-08-3E | 800 mm | 3000 mm | 2.00 kN | 13.50 kg | show all inclusive accessoires |
