WPV 100

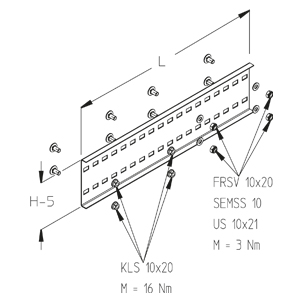

In order to compensate for the heat expansion one side of the connector is mounted as a loose bearing. The given torques must be observed. The other side of the connector is to be mounted as a fixed bearing. A minimum distance of 4mm must be kept between the cable ladders. This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.
Артикул | Product | height | length | weight | incl. | Включает | |
---|---|---|---|---|---|---|---|
WPV 100E | 95 mm | 400 mm | 0.98 kg | show all inclusive accessoires |
