WLDR

wide-span cable ladder cover with turning bolts

Cover for wide-span cable ladders. With additional turning bolts.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Артикул	Product	height	width	length	t material thickness
WLDR 20S	10 mm	237 mm	3000 mm	0.75 mm	4.68 kg
WLDR 30S	10 mm	337 mm	3000 mm	1.00 mm	8.55 kg
WLDR 40S	10 mm	437 mm	3000 mm	1.00 mm	10.91 kg
WLDR 50S	10 mm	537 mm	3000 mm	1.25 mm	16.55 kg
WLDR 60S	10 mm	637 mm	3000 mm	1.25 mm	19.49 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

Артикул	Product	height	width	length	t material thickness
WLDR 20F	10 mm	237 mm	3000 mm	0.75 mm	5.00 kg
WLDR 30F	10 mm	337 mm	3000 mm	1.00 mm	9.15 kg
WLDR 40F	10 mm	437 mm	3000 mm	1.00 mm	11.67 kg
WLDR 50F	10 mm	537 mm	3000 mm	1.25 mm	17.71 kg
WLDR 60F	10 mm	637 mm	3000 mm	1.25 mm	20.85 kg

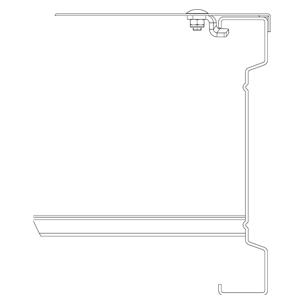

Details / Applications
