WPD

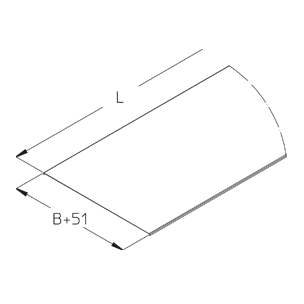

wide-span cover

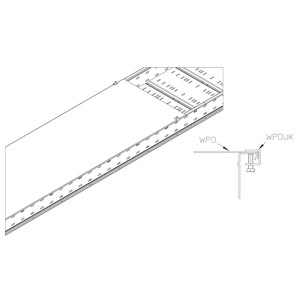

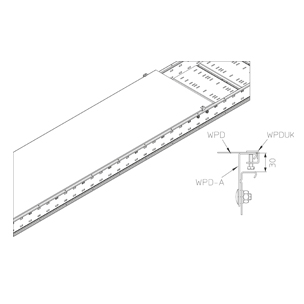

cover for wide-span cable trays

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

Артикул	Product	width	length
WPD 20S	200 mm	3000 mm	4.75 kg
WPD 30S	300 mm	3000 mm	8.69 kg
WPD 40S	400 mm	3000 mm	11.04 kg
WPD 50S	500 mm	3000 mm	16.75 kg
WPD 60S	600 mm	3000 mm	19.69 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

Артикул	Product	width	length
WPD 20F	200 mm	3000 mm	5.08 kg
WPD 30F	300 mm	3000 mm	9.30 kg
WPD 40F	400 mm	3000 mm	11.82 kg
WPD 50F	500 mm	3000 mm	17.92 kg
WPD 60F	600 mm	3000 mm	21.07 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Артикул	Product	width	length
WPD 20E	200 mm	3000 mm	5.10 kg
WPD 30E	300 mm	3000 mm	8.75 kg
WPD 40E	400 mm	3000 mm	11.12 kg
WPD 50E	500 mm	3000 mm	16.86 kg
WPD 60E	600 mm	3000 mm	19.82 kg

Details / Applications

Accessories
