WPDUK

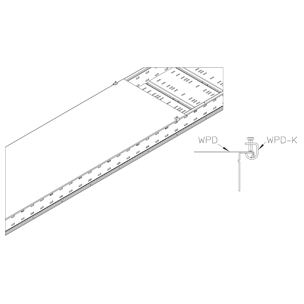

Cover clamp with screw head for mounting wide span covers on the underside for a flat appearance.
Can also be used as storm protection angle. According to assembly instructions you should use at least 6 safety elements for each 3 meters cable path cover. For wind-exposed areas, the number of cover clamps must be increased to at least 10 pcs.
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
Stainless steel, according to ASTM 304 / BS 304 S 3
Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Артикул | Product | height | width | length |
t
material thickness
| torque | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|---|---|
| WPDUK F | 22 mm | 20 mm | 21 mm | 3.00 mm | 2 Nm | 0.02 kg | show all inclusive accessoires |
| Артикул | Product | height | width | length |
t
material thickness
| torque | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|---|---|
| WPDUK E | 22 mm | 20 mm | 21 mm | 3.00 mm | 2 Nm | 0.02 kg | show all inclusive accessoires |
| Артикул | Product | height | width | length |
t
material thickness
| torque | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|---|---|
| WPDUK E4 | 22 mm | 20 mm | 21 mm | 3.00 mm | 2 Nm | 0.02 kg | show all inclusive accessoires |
