WPLB 120

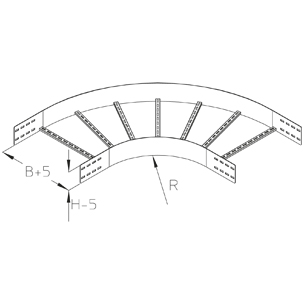

wide-span bend 90 for horizontal change of direction, with integrated connectors
Formed components must be supported at all sides.
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| Артикул | Product | height | width | radius | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|
| WPLB 120-20F | 120 mm | 200 mm | 450 mm | 8.85 kg | show all inclusive accessoires | |||
| WPLB 120-30F | 120 mm | 300 mm | 450 mm | 9.68 kg | show all inclusive accessoires | |||
| WPLB 120-40F | 120 mm | 400 mm | 450 mm | 10.80 kg | show all inclusive accessoires | |||
| WPLB 120-50F | 120 mm | 500 mm | 450 mm | 12.07 kg | show all inclusive accessoires | |||
| WPLB 120-60F | 120 mm | 600 mm | 450 mm | 13.04 kg | show all inclusive accessoires |
