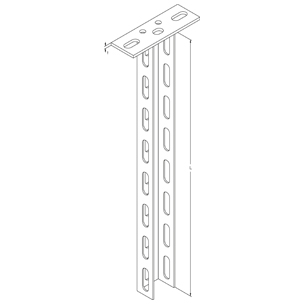

KDU 40
Ceiling bracket support, U-profile 40x30x2 mm, continuously three-way perforated, with welded head plate (material thickness t), certified according to DIN EN 61537.
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| Артикул | Product | length |
t
material thickness
| weight | |
|---|---|---|---|---|---|
| KDU 40-02F | 200 mm | 4.00 mm | 0.38 kg | ||
| KDU 40-03F | 300 mm | 4.00 mm | 0.50 kg | ||
| KDU 40-04F | 400 mm | 4.00 mm | 0.62 kg | ||
| KDU 40-05F | 500 mm | 4.00 mm | 0.73 kg | ||
| KDU 40-06F | 600 mm | 4.00 mm | 0.86 kg | ||
| KDU 40-07F | 700 mm | 4.00 mm | 0.98 kg | ||
| KDU 40-08F | 800 mm | 4.00 mm | 1.10 kg | ||
| KDU 40-09F | 900 mm | 4.00 mm | 1.22 kg | ||
| KDU 40-10F | 1000 mm | 4.00 mm | 1.34 kg | ||
| KDU 40-11F | 1100 mm | 4.00 mm | 1.46 kg | ||
| KDU 40-12F | 1200 mm | 4.00 mm | 1.58 kg | ||
| KDU 40-13F | 1300 mm | 4.00 mm | 1.70 kg | ||
| KDU 40-14F | 1400 mm | 4.00 mm | 1.82 kg | ||
| KDU 40-15F | 1500 mm | 4.00 mm | 1.94 kg |
