KDU 57

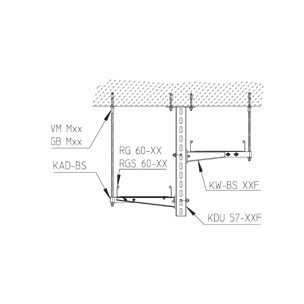

Ceiling bracket support, U-profile 57x30x2.5 mm, continuously three-way perforated, with welded head plate (material thickness t), certified according to DIN EN 61537.
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| Артикул | Product | length |
t
material thickness
| weight | |
|---|---|---|---|---|---|
| KDU 57-02F | 200 mm | 5.00 mm | 0.59 kg | ||
| KDU 57-03F | 300 mm | 5.00 mm | 0.77 kg | ||
| KDU 57-04F | 400 mm | 5.00 mm | 0.95 kg | ||
| KDU 57-05F | 500 mm | 5.00 mm | 1.13 kg | ||
| KDU 57-06F | 600 mm | 5.00 mm | 1.31 kg | ||
| KDU 57-07F | 700 mm | 5.00 mm | 1.49 kg | ||
| KDU 57-08F | 800 mm | 5.00 mm | 1.68 kg | ||
| KDU 57-09F | 900 mm | 5.00 mm | 1.86 kg | ||
| KDU 57-10F | 1000 mm | 5.00 mm | 2.04 kg | ||
| KDU 57-11F | 1100 mm | 5.00 mm | 2.22 kg | ||
| KDU 57-12F | 1200 mm | 5.00 mm | 2.40 kg | ||
| KDU 57-13F | 1300 mm | 5.00 mm | 2.58 kg | ||
| KDU 57-14F | 1400 mm | 5.00 mm | 2.77 kg | ||
| KDU 57-15F | 1500 mm | 5.00 mm | 2.95 kg |
