FRSV

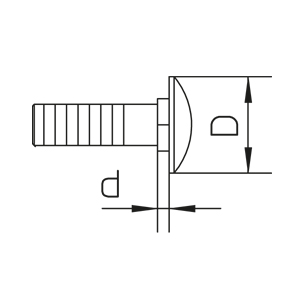

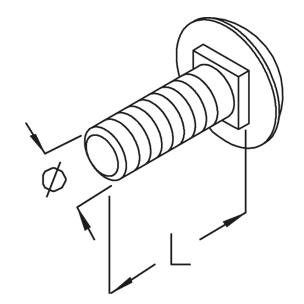

round-head screw with short square, DIN 603

galvanized, according to ISO 4042

Артикул	Product	length	diameter	diameter	d thickness
FRSV 6X12	12 mm	16 mm	6 mm	1.50 mm	0.50 kg/100
FRSV 6X16	16 mm	16 mm	6 mm	1.50 mm	0.70 kg/100
FRSV 8X16	16 mm	20 mm	8 mm	2 mm	1.30 kg/100
FRSV 10X20	20 mm	24 mm	10 mm	2.50 mm	2.30 kg/100

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

Артикул	Product	length	diameter	diameter	d thickness	weight
FRSV 10X20F	20 mm	24 mm	10 mm	2.50 mm	2.30 kg/100

Stainless steel, according to ASTM 304 / BS 304 S 3

Артикул	Product	length	diameter	diameter	d thickness
FRSV 6X12E	12 mm	16 mm	6 mm	1.50 mm	0.50 kg/100
FRSV 6X16E	16 mm	16 mm	6 mm	1.50 mm	0.70 kg/100
FRSV 8X16E	16 mm	20 mm	8 mm	2 mm	1.30 kg/100
FRSV 10X20E	20 mm	24 mm	10 mm	2.50 mm	2.30 kg/100

Stainless steel, according to ASTM 31 Ti / AISI 316 L, BS 320S17 / BS 316S11

Артикул	Product	length	diameter	diameter	d thickness	weight
FRSV 6X12E4	12 mm	16 mm	6 mm	1.50 mm	0.50 kg/100
FRSV 10X20E4	20 mm	24 mm	10 mm	2.50 mm	2.40 kg/100

Details / Applications
