RB-BS 60

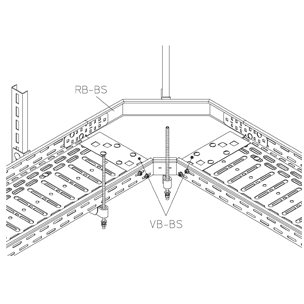

cable tray bend, 90 , for horizontal change of direction with integrated connectors
The producte can be used for fire protection. For technical parameters, see National Technical Test Certificates (abPs).
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| Артикул | Product | height | width | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|
| RB-BS 60-10S | 60 mm | 100 mm | 0.80 kg | show all inclusive accessoires | |||
| RB-BS 60-20S | 60 mm | 200 mm | 1.27 kg | show all inclusive accessoires | |||
| RB-BS 60-30S | 60 mm | 300 mm | 1.92 kg | show all inclusive accessoires |
| Артикул | Product | height | width | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|
| RB-BS 60-10F | 60 mm | 100 mm | 0.92 kg | show all inclusive accessoires | |||
| RB-BS 60-20F | 60 mm | 200 mm | 1.38 kg | show all inclusive accessoires | |||
| RB-BS 60-30F | 60 mm | 300 mm | 2.14 kg | show all inclusive accessoires |
