DKSL-BS

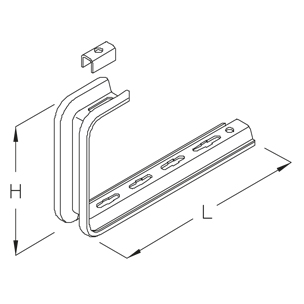

Ceiling bracket, light version made of W-/trapezoidal profile 60x20x2.5 mm, perforated in the center, suspension length 170 mm.
The productes can be used for fire protection. This product is only to be used in conjunction with the cable tray for standard support construction. For technical parameters, see National Technical Test Certificates (abPs).
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| Артикул | Product | height | width | width | length | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|---|
| DKSL-BS 010S | 170 mm | 100 mm | 130 mm | 150 mm | 0.66 kg | show all inclusive accessoires | |||
| DKSL-BS 020S | 170 mm | 200 mm | 230 mm | 250 mm | 0.75 kg | show all inclusive accessoires | |||
| DKSL-BS 030S | 170 mm | 300 mm | 330 mm | 350 mm | 0.93 kg | show all inclusive accessoires |
| Артикул | Product | height | width | width | length | weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|---|
| DKSL-BS 010F | 170 mm | 100 mm | 130 mm | 150 mm | 0.71 kg | show all inclusive accessoires | |||
| DKSL-BS 020F | 170 mm | 200 mm | 230 mm | 250 mm | 0.80 kg | show all inclusive accessoires | |||
| DKSL-BS 030F | 170 mm | 300 mm | 330 mm | 350 mm | 0.99 kg | show all inclusive accessoires |
