KDU 57

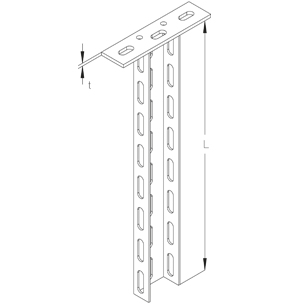

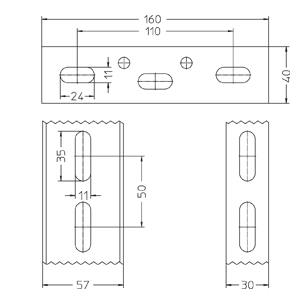

Ceiling bracket support, U-profile 57x30x2.5 mm, continuously three-way perforated, with welded head plate (material thickness t), certified according to DIN EN 61537.

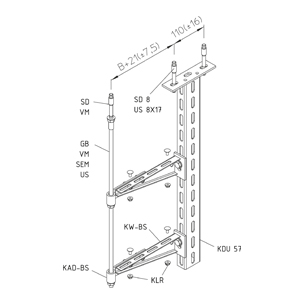

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish. The productes can be used for fire protection. This product is only to be used in conjunction with the cable tray for standard support construction. For technical parameters, see National Technical Test Certificates (abPs).
Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)
| Артикул | Product | length |
t
material thickness
| weight | |
|---|---|---|---|---|---|
| KDU 57-02F | 200 mm | 5.00 mm | 0.59 kg | ||
| KDU 57-03F | 300 mm | 5.00 mm | 0.77 kg | ||
| KDU 57-04F | 400 mm | 5.00 mm | 0.95 kg | ||
| KDU 57-05F | 500 mm | 5.00 mm | 1.13 kg | ||
| KDU 57-06F | 600 mm | 5.00 mm | 1.31 kg | ||
| KDU 57-07F | 700 mm | 5.00 mm | 1.49 kg | ||
| KDU 57-08F | 800 mm | 5.00 mm | 1.68 kg | ||
| KDU 57-09F | 900 mm | 5.00 mm | 1.86 kg | ||
| KDU 57-10F | 1000 mm | 5.00 mm | 2.04 kg | ||
| KDU 57-11F | 1100 mm | 5.00 mm | 2.22 kg | ||
| KDU 57-12F | 1200 mm | 5.00 mm | 2.40 kg | ||
| KDU 57-13F | 1300 mm | 5.00 mm | 2.58 kg | ||
| KDU 57-14F | 1400 mm | 5.00 mm | 2.77 kg | ||
| KDU 57-15F | 1500 mm | 5.00 mm | 2.95 kg |
