BODO N

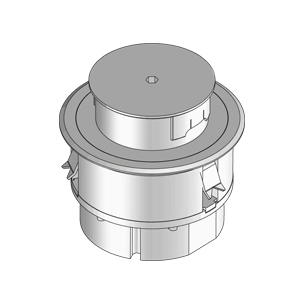

Round single outlet with floor cover protection frame. Including pivotable tube as cable outlet, cover, mounting box with strain-relief, claw set and rubber seal. For installation in floor sockets and raised or hollow space floor openings. Equipped with an isolated ground receptacle of 45x45 mm and an RJ45 data socket of 22,5x45 mm (Legrand type Cat. 6A STP RJ45, 76573). Suitable for rooms with dry and wet-cleaned floor covers. Designed for high traffic loads.
Please mind the technical information in chapter planning.
Aluminium
Brass
Stainless steel, according to ASTM 304 / BS 304 S 3

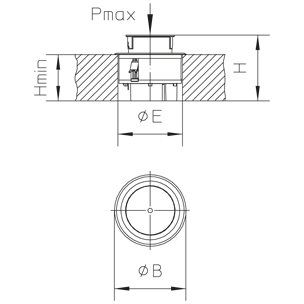

| Артикул | Product | height |
Hmin
Minimum installation height
| width |
E
fitting dimension
|
Pmax
Maximum load
| colour |
IPn
IP protection level in unused condition
|
IPg
IP protection level in used condition
| weight | Включает | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BODO N | 122 mm | 87 mm | 140 mm | 122 mm | 15 kN | aluminum | IP 66 | IP 43 | 0.73 kg | show all inclusive accessoires | ||
| BODO N-SW | 122 mm | 87 mm | 140 mm | 122 mm | 15 kN | black | IP 66 | IP 43 | 0.73 kg | show all inclusive accessoires | ||
| BODO N-CR | 122 mm | 87 mm | 140 mm | 122 mm | 15 kN | chrome | IP 66 | IP 43 | 0.73 kg | show all inclusive accessoires |
| Артикул | Product | height |
Hmin
Minimum installation height
| width |
E
fitting dimension
|
Pmax
Maximum load
| colour |
IPn
IP protection level in unused condition
|
IPg
IP protection level in used condition
| weight | Включает | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BODO N-MMS | 122 mm | 87 mm | 140 mm | 122 mm | 15 kN | brass, solid | IP 66 | IP 43 | 1.51 kg | show all inclusive accessoires |
| Артикул | Product | height |
Hmin
Minimum installation height
| width |
E
fitting dimension
|
Pmax
Maximum load
| colour |
IPn
IP protection level in unused condition
|
IPg
IP protection level in used condition
| weight | Включает | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BODO N-E | 122 mm | 87 mm | 140 mm | 122 mm | 15 kN | Stainless steel, solid | IP 66 | IP 43 | 1.46 kg | show all inclusive accessoires |
