UDEP 5PCOM
Installation board made of aluminium, coated black. To be screwed into a data device carrier. Retainer for snap-in plug-type connection sockets or plugs
Aluminium

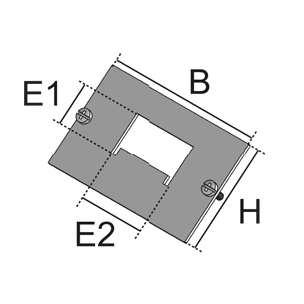

| Артикул | Product | height | width |
E1
fitting dimension
|
E2
fitting dimension
|
snap-in socket
Maximum number of installable snap-in sockets
| weight | |
|---|---|---|---|---|---|---|---|---|
| UDEP-5PCOM 1 | 46 mm | 75 mm | 18.50 mm | 31.80 mm | 1x 5 pole X-COM, 400 V, 32 A | 0.03 kg |
