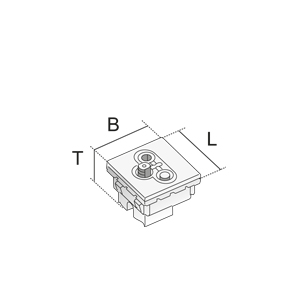

TV/Radio/SAT single cup, snap-in assembly into 45x45mm installation openings.

Outlet: TV: IEC connector (male) IEC 60169-2, FM: IEC socket (female) IEC 60169-2, SAT: F connector (female) IEC 60169-24 Frequency: TV: 5-68, 120-862 MHz, FM: 87.5-108 MHz, SAT: 950-2150 Mhz Impedance: 75 ohms Shielding effectiveness: UHF > 65 dB VHF > 75 dB, SAT > 55 dB Recommended cable dimensions: 7 mm
