UKDA 308R
Assembly covers made of Sendzimir galvanized sheet steel for applying to the side profile of the bottom part of the cable duct including turning bolt. Usable as pull- and installation box, with one opening for insertion of a shuttering unit that will be replaced with a round assembly unit during final assembly.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

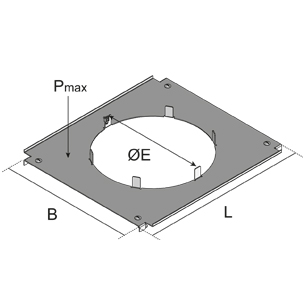

| Артикул | Product | width | length |
E
fitting dimension
|
Pmax
Maximum load
|
mounting box
Maximum number of installable device casings.
| weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|---|---|
| UKDA-308R 40S | 400 mm | 495 mm | 310 mm | 0.75 kN | 3 | 2.30 kg | show all inclusive accessoires | |||
| UKDA-308R 50S | 500 mm | 595 mm | 310 mm | 0.75 kN | 3 | 3.90 kg | show all inclusive accessoires |
