UEBSBMD 185V
Assembly dummy cover with square opening made of Sendzimir-hot-dip-galvanised steel sheet. To be used in replacement for a dummy cover for the accommodation of one installation unit, double. Designed for office traffic loads.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

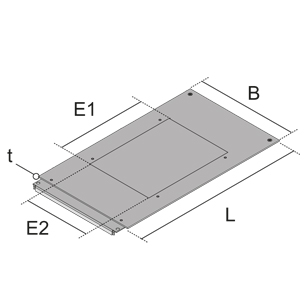

| Артикул | Product | width | length |
E1
fitting dimension
|
E2
fitting dimension
|
t
material thickness
|
mounting box
Maximum number of installable device casings.
| weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UEBSBMD-185V 30S | 300 mm | 500 mm | 261 mm | 186 mm | 3.00 mm | 2 | 4.03 kg | show all inclusive accessoires | |||
| UEBSBMD-185V 40S | 400 mm | 500 mm | 261 mm | 186 mm | 3.00 mm | 2 | 5.32 kg | show all inclusive accessoires |
