UEBSBMD 307R

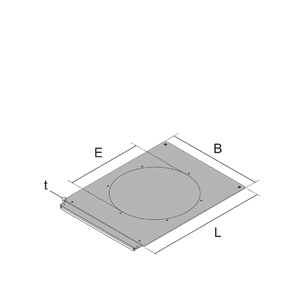

Assembly dummy cover with round opening made of Sendzimir-hot-dip-galvanised steel sheet. To be used in replacement for a dummy cover for the accommodation of one installation unit, tripple. Designed for office traffic loads.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| Артикул | Product | width | length |
E
fitting dimension
|
t
material thickness
|
mounting box
Maximum number of installable device casings.
| weight | incl. | Включает | |
|---|---|---|---|---|---|---|---|---|---|---|
| UEBSBMD-307R 40S | 400 mm | 500 mm | 307 mm | 3.00 mm | 3 | 5.23 kg | show all inclusive accessoires | |||
| UEBSBMD-307R 50S | 500 mm | 500 mm | 307 mm | 3.00 mm | 3 | 6.58 kg | show all inclusive accessoires |
